PN – Displacement rectangular supply air diffuser – surface-mounted installation
Displacement supply air for wall installation

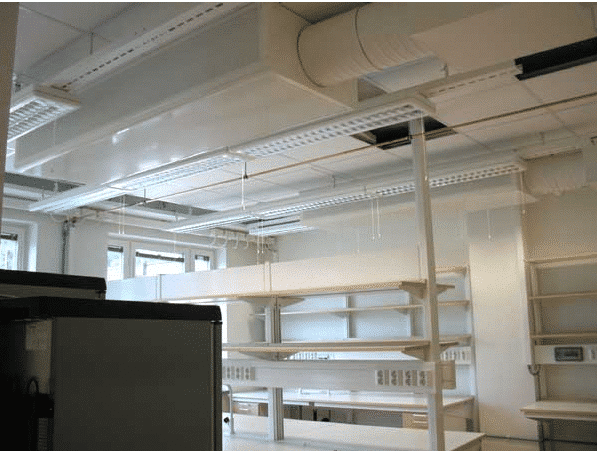

The PN series consists of low velocity air diffusers for surface-mounted installation on walls, floors, or ceilings. The diffusers are particularly suitable for high airflow rates and feature a modern design with a smooth front and reinforcement grooves. The diffusers are equipped with REPUS® nozzles that provide even air distribution across the entire front surface and short near zones. The design makes them completely maintenance-free and without risk of future clogging. PN diffusers are ideally used in offices, cinemas, restaurants, and similar environments.
Technical Specifications:
-
Adapted for wall, floor, or ceiling installation
-
Smooth front with reinforcement grooves, 1.0 mm
-
Snap-in technology without screws or pop rivets
-
Material: galvanised sheet steel
-
Visible parts powder-coated white RAL 9003 gloss 30% (NCS 0500s)
-
Adjustable near zone
-
Type:
-
PNC (circular connection)
-
PNR (rectangular connection)
-
-
REPUS® nozzles with adjustable air distribution pattern for optimal comfort
-
Displacement system with better air quality and lower temperature in the occupied zone than at ceiling level
-
Energy-efficient and environmentally friendly design with recyclable materials
-
Short near zone and a pleasant climate in the occupied zone
-
Completely maintenance-free diffuser that only requires wiping
-
The front is removable for potential cleaning
-
Fixed measuring point for checking airflow rates
-
Easy installation on wall, floor, or ceiling
AMA Text for Design
TDxx REPUS® low velocity air diffuser for surface-mounted installation type PN or equivalent
- The diffuser shall have internally mounted adjustable REPUS® nozzles for optimal air distribution
- Material: galvanised sheet steel
- Colour: powder-coated, white RAL 9003 gloss 30% or as per order
Product designation
PNC.AAAxBBBxCCC-Øxxx | PNR.bbbxhhhxddd-eexgg
Use our configurator for sizing the
PN system (PNC/PNR) for your project.
Modern and durable design
Smooth front with reinforcement grooves.
Low sound level
Optimized for comfort ventilation Minimal pressure drop for energy savings
