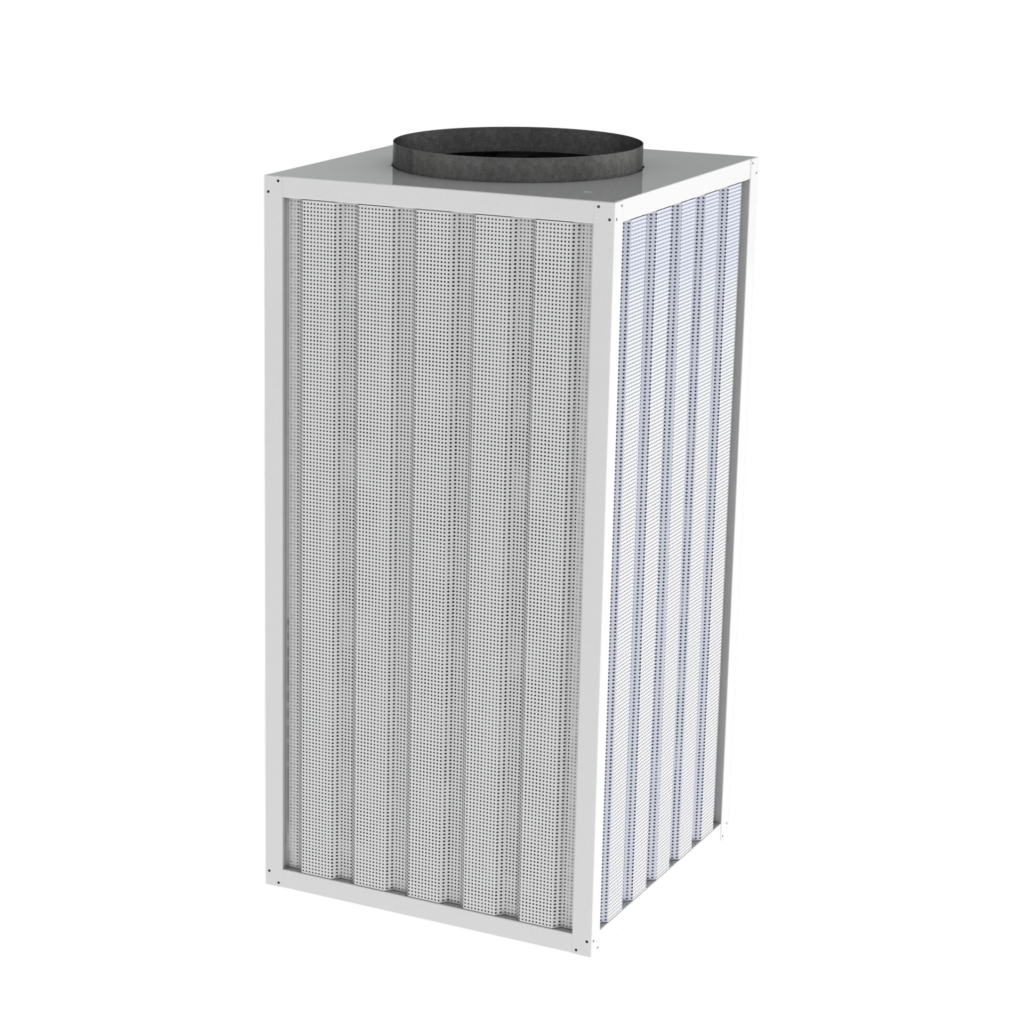

K – Square Displacement Supply Air Diffusers
Floor-standing Industrial Supply Air Diffuser with Multi-directional Air Distribution
KC, KD, and KE are square low velocity air diffusers for surface-mounted installation on the floor. These diffusers are primarily used for high airflow rates in industrial premises, commercial kitchens, event venues, and similar environments, where they provide a displacement system with better air quality and lower temperature in the occupied zone than at ceiling level. The diffusers feature adjustable REPUS® nozzles that ensure even air distribution across the entire front surface with short near zones, making them completely maintenance-free.
The diffusers can be supplied with a reinforced front and plinth if the connection is located on the underside.
Technical Specifications:
-
Square diffusers with two-, three-, or four-way air distribution:
-
KC – two-way air distribution
-
KD – three-way air distribution
-
KE – four-way air distribution
-
-
Made of galvanised sheet steel
-
Profiled front 1.0 mm
-
Visible parts powder-coated, white RAL 9003 (NCS 0500s)
-
Floor mounting
-
Fixed measuring port for airflow rate control
-
REPUS® nozzles with adjustable air distribution pattern for optimal comfort
-
Robust construction for high airflow rates
-
Energy-efficient and environmentally friendly with recyclable materials
-
Short near zone and comfortable climate in the occupied zone
-
Maintenance-free diffuser that only requires wiping
-
The front is detachable for cleaning when needed
-
Can be equipped with a plinth and reinforced front if required
-
Easy floor mounting
AMA Text for Design
TDxx REPUS® low velocity air diffuser for surface-mounted installation, type KC, KD, or KE, or equivalent.
- The diffuser must have internally mounted adjustable REPUS® nozzles for optimal air distribution.
- Material: galvanised sheet steel
- Colour: powder-coated, white RAL 9003 gloss 30% or as per order
Product designation
KEC.AAAxBBBxCCC-Øxxx | KDC.AAAxBBBxCCC-Øxxx | KCC.AAAxBBBxCCC-Øxxx
Use our configurator for dimensioning KC, KD, and KE diffusers based on your project’s specifications.
Selectable air distribution
two-, three-, or four-way air distribution for optimal comfort.
Robust construction
Durable diffusers for high airflow rates and industrial environments.
Maintenance-free design
Long lifespan with minimal service requirements
