DKL - Circular nozzle duct
Even air distribution over long distances at variable airflow rates

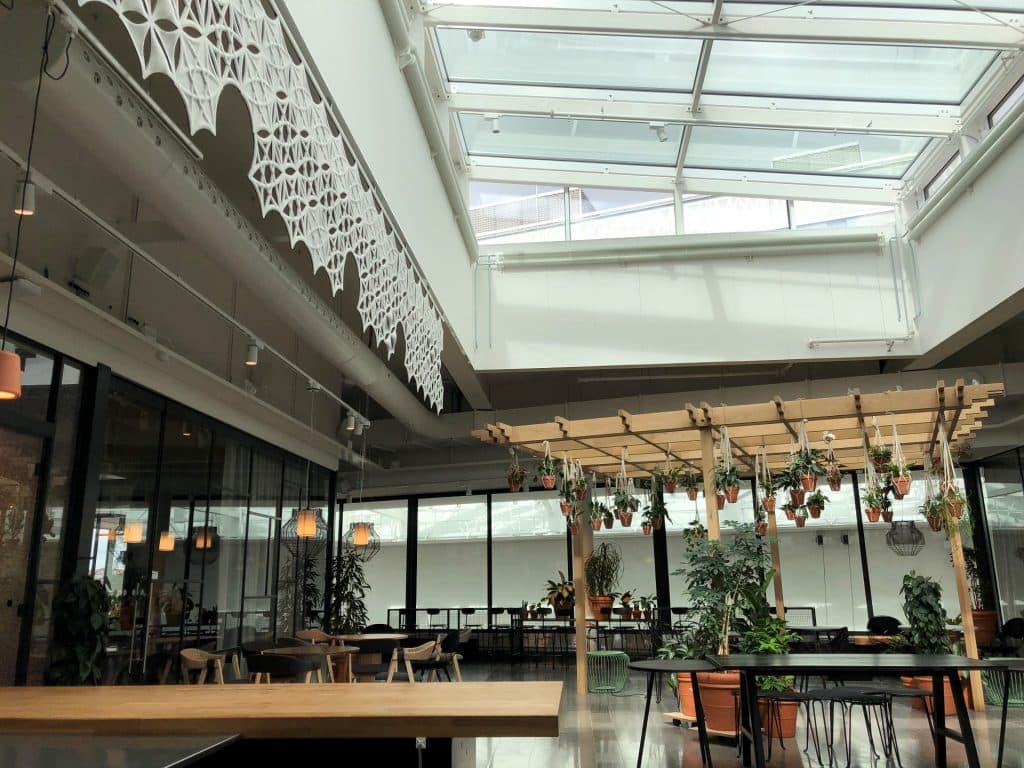

Repus DKL nozzle ducts can be installed freely suspended in the room, with a mixing air distribution to both sides. This innovative Swedish invention revolutionises ventilation solutions by combining energy efficiency with exceptional performance. The system offers a variable airflow rate, enabling smart sizing for maximum conditions, followed by intelligent adjustment via a damper, CO₂ measurement and temperature measurement in smart building systems.
With its low pressure drop and minimal energy consumption, the DKL series represents the future of sustainable ventilation. The longitudinally seamed construction in sizes from 160 mm to 630 mm is manufactured in galvanised sheet steel with a powder-coated finish in RAL 9003, gloss 30%, ensuring both aesthetics and long-term performance without sensitive materials.
Technical Specifications:
-
Diameter: 160-630 mm (standard 160-400 mm)
-
Lengths: 0.5 m, 1.0 m, 1.5 m, 2.0 m
-
Material: Galvanised sheet steel (80% Fe, 0.8% Zn)
-
Nozzles: PP plastic (12%) in white, grey or black
-
Expected service life: >40 years
-
Low pressure drop – energy-efficient operation
-
97% material recycling possible
-
No emissions to indoor air
-
Rated for variable airflow rate
-
Sound level: Exceptionally low
-
Easy sizing via configurator
-
MagiCAD-compatible for design
-
Modular design for flexibility
-
Maintenance-free construction
AMA Text for Design
TD xx Nozzle duct of type DKL or equivalent. Repus nozzles that utilise both dynamic and static pressure for absolutely even air distribution.
- Cover caps and air deflectors shall be possible to install on the nozzles afterwards
- Galvanised sheet steel, powder-coated RAL 9003 gl30
- Cleanable construction in accordance with hygienic requirements
- Supplied with painted nipples, end caps and clamps
- Accessories – painted bends (DKB), T-piece (DKT), longitudinally seamed duct (DKK)
Product designation
DKL.bbb.cc.d.e | DKB.bbb.xx | DKT.bbb.bbb | DKK.bbb.cc
Use our configurator for precise sizing of the DKL system, tailored to your specific needs and the project conditions.
Flexible air distribution pattern
Cover caps and air deflectors enable adjustment of the air distribution pattern.
Maintenance-free design
REPUS® nozzles ensure even air distribution over time.
